What’s the Difference Between a PCB CNC Drilling Machine and a Routing Machine — and Which One Should You Buy?

In the world of PCB (Printed Circuit Board) manufacturing, two essential CNC machines play distinct roles in the production process: CNC drilling machines and CNC routing machines (commonly referred to as routers or depaneling machines). Although they may look similar at first glance, their functions, tooling, and applications are quite different.

This article will explain the key differences between the two, and help you decide which machine best suits your production needs.

1. What Are CNC Drilling and Routing Machines?

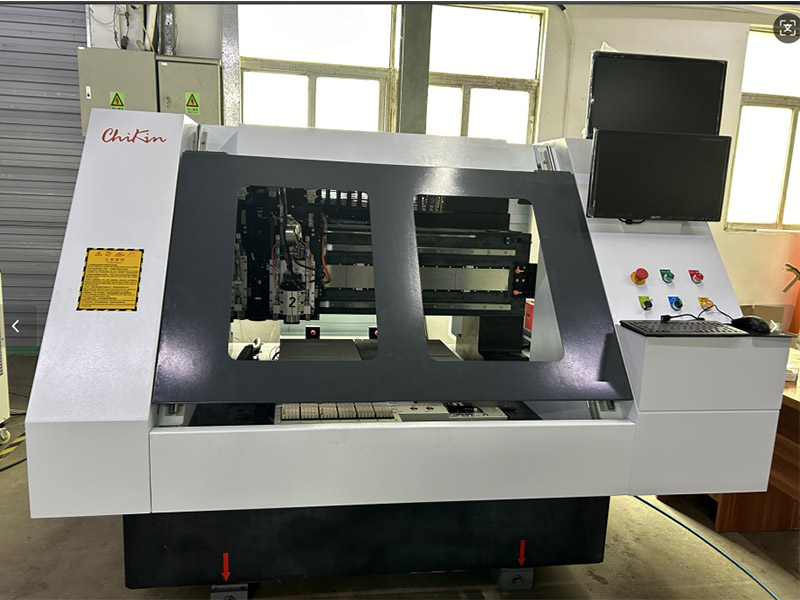

🛠 CNC Drilling Machine

A CNC drilling machine is used to drill via holes, through-holes, mounting holes, and positioning holes on PCB panels. These holes are critical for electrical connections and component placement.

Key Features:

• Ultra-high-speed spindle (150,000 to 300,000 RPM)

• Automatic tool changer (ATC) for multiple drill bits

• High precision (hole positioning within ±20μm)

• Suitable for rigid, flexible, or multilayer PCBs

🛠 CNC Routing Machine

A CNC router is designed to cut the board outline, including profile cutting, depaneling, slots, and grooves. Instead of drill bits, it uses milling tools (end mills).

Key Features:

• Focuses on contour/profile cutting

• Typically slower spindle speed (30,000–60,000 RPM)

• Capable of handling FR4, aluminum, copper base boards

• Replaces manual cutting, improving consistency and yield

2. Key Differences at a Glance

3. Which Machine Should You Buy?

The answer depends on your production goals and product design:

✅ Choose a CNC Drilling Machine if:

• Your PCB designs include many vias or plated holes

• You need high-precision hole placement

• You manufacture multilayer boards, HDI, or complex designs

✅ Choose a CNC Routing Machine if:

• You need to separate panelized PCBs into individual units

• Your board has non-rectangular shapes or cutouts

• You require high-quality board edges or stress-free depaneling

❗️In many cases, you may need both:

Drilling and routing are often two separate processes in a complete PCB manufacturing line. If your production volume justifies it, investing in both machines will give you flexibility and control over your full PCB fabrication workflow.
