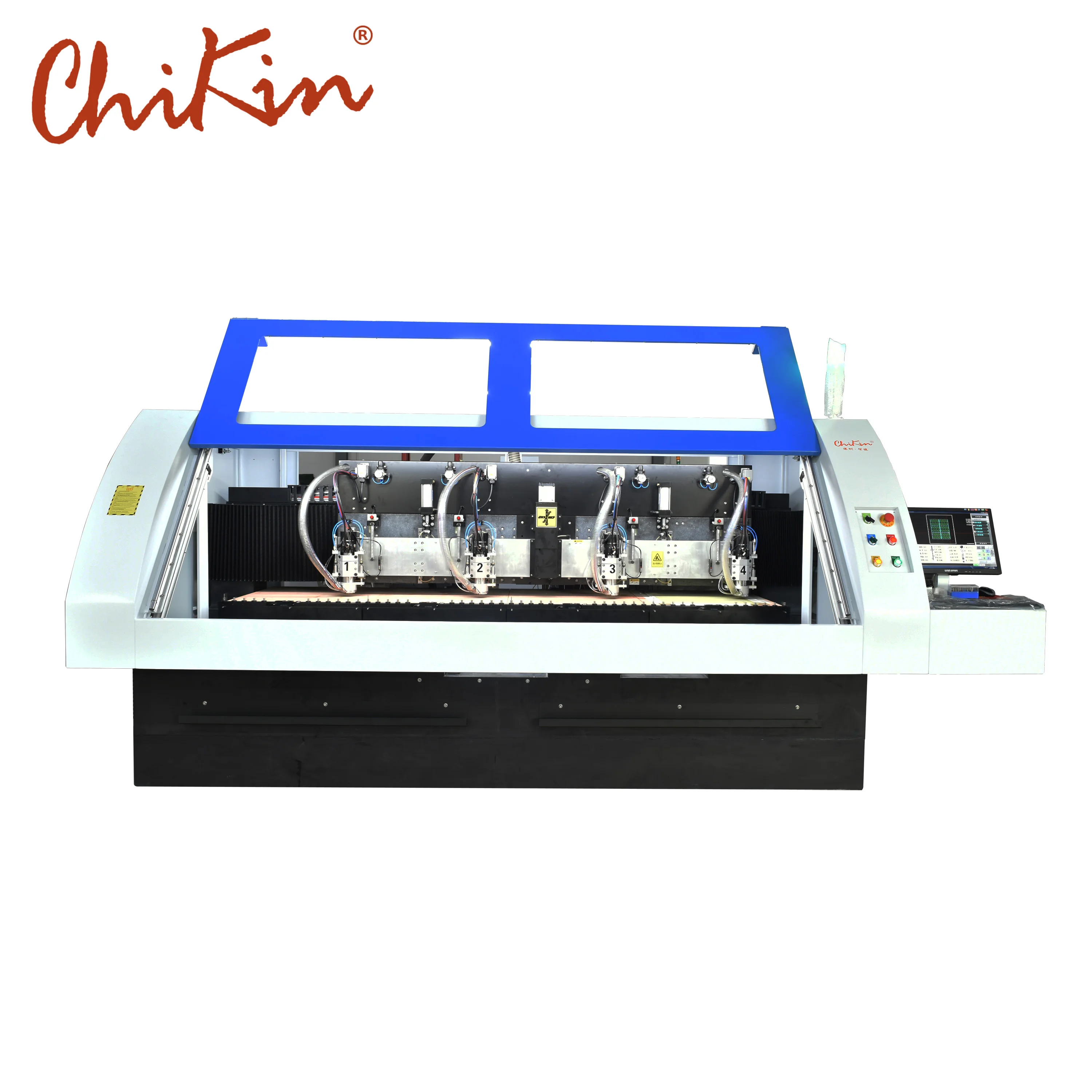

The Chikin 4 Spindle PCB Drilling and Routing Machine (CK-04R) is a high-throughput powerhouse for mid-to-high volume PCB manufacturing. With 4 synchronized high-speed spindles (60,000 RPM, 1.8 kW each), robust granite base for vibration-free stability, premium German/Japanese linear guides & ballscrews, automatic tool change, tool length detection, tool diameter detection, broken tool detection, and pressure foot switch. Achieve ±0.005 mm repeatability and positioning accuracy — ideal for efficient drilling and routing on multilayer FR4, aluminum substrates, and complex panels.

A PCB CNC drilling and routing machine helps manufacturers solve a common production problem: how to make precise holes, slots, outlines, and repeatable board features without relying on manual alignment. For prototyping and small-batch PCB work, consistency matters as much as speed. A computer-controlled system reduces positioning errors, supports steady output, and makes it easier to process flat board-like materials with the same geometry from part to part.

Chikin 1 Drill 1 Route PCB Machine with CCD is a smart, efficient hybrid solution combining one dedicated high-speed drilling spindle and one powerful routing spindle in a single machine. Integrated CCD vision ensures automatic fiducial alignment and precise registration. Built with robust granite base, high-accuracy linear guides & ballscrews, automatic tool change, tool length detection, tool diameter detection, broken tool detection, and pressure foot switch. Ideal for mid-volume PCB production requiring both drilling and routing without tool swapping or multiple setups — achieving ±0.005mm repeatability and clean results on FR4, flex, rigid-flex, and aluminum boards.

Chikin 1 Drill 1 Route PCB Machine with CCD is the smart hybrid solution for mid-volume PCB production. One dedicated high-speed drilling spindle + one robust routing spindle, integrated CCD vision for automatic fiducial alignment, robust granite base, premium linear guides & ballscrews, automatic tool change, tool length detection, tool diameter detection, broken tool detection, and pressure foot switch. Delivers ±0.005mm repeatability and positioning accuracy — perfect for efficient drilling + contour routing on FR4, flex, rigid-flex, and aluminum PCBs without frequent tool swaps.

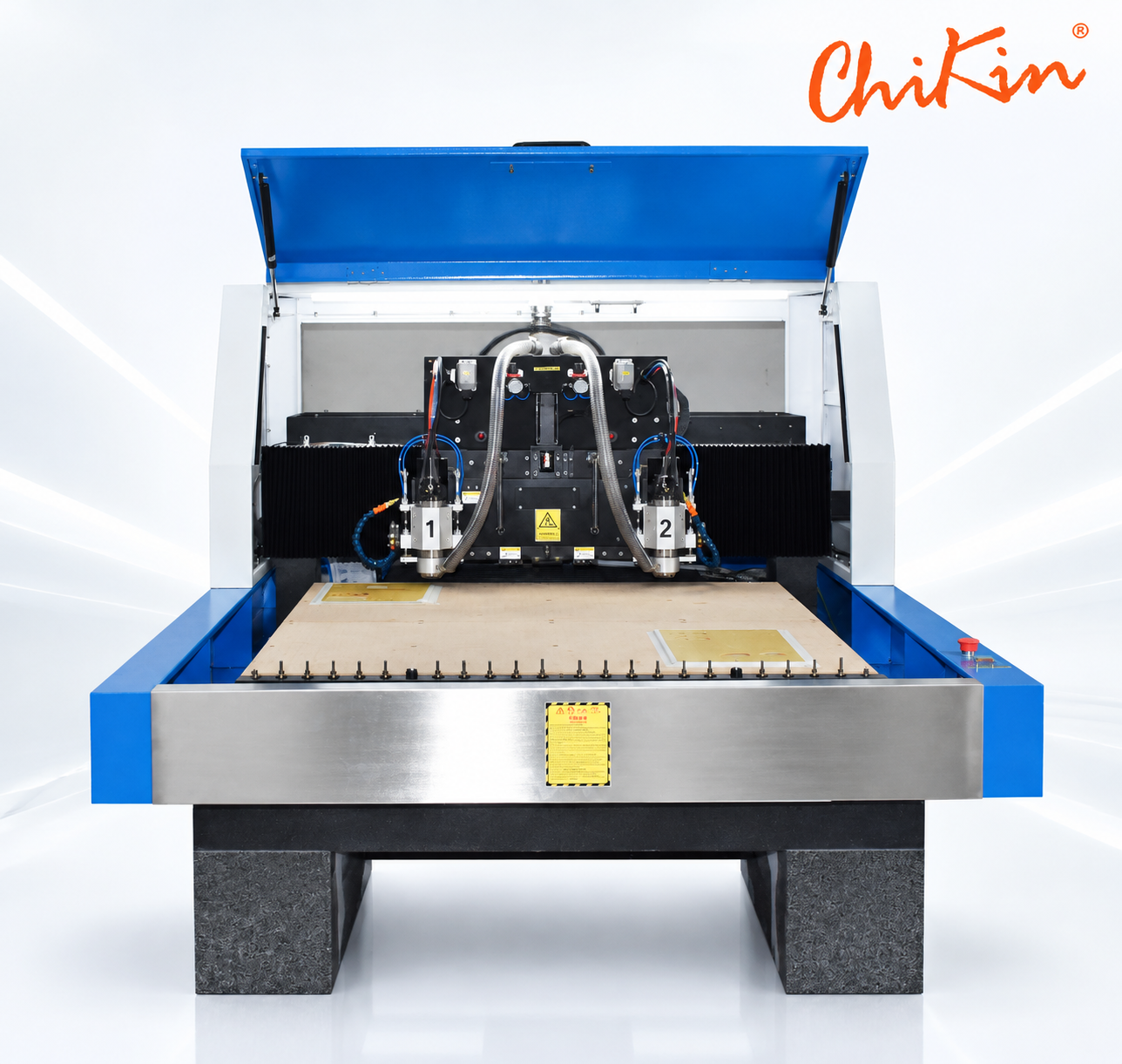

The Chikin 2 Spindle PCB Drilling and Routing Machine (CK-02R) delivers balanced efficiency for mid-volume PCB production. Featuring a robust granite base for vibration stability, high-accuracy linear guides and ballscrews, dual high-speed water-cooled spindles (60,000 RPM, 1.8KW), and full automatic tool change with length/diameter/broken tool detection + pressure foot switch. Achieve ±0.005mm repeatability and positioning accuracy, making it perfect for precise drilling and routing on FR4, multilayer, and aluminum boards — without compromise on speed or reliability.

High-Precision Dual-Spindle PCB Drilling & Routing Solutions

CHIKIN CNC specializes in advanced PCB drilling and routing equipment, delivering high-speed, high-precision, and highly stable automation solutions for PCB manufacturers worldwide. Our dual-spindle PCB drilling & routing machines are built with a high-rigidity granite structure combined with German Rexroth / Japanese precision linear guides and ball screws, ensuring long-term stability and repeatability accuracy up to ±0.005mm for demanding PCB applications.

Equipped with dual synchronized spindles running up to 60,000 RPM, CHIKIN machines significantly improve drilling and routing efficiency while reducing production costs. Automatic tool changing, broken tool detection, tool length measurement, and intelligent CNC control systems help minimize downtime, improve machining consistency, and maximize production yield.

Compared with conventional PCB equipment, CHIKIN CNC focuses on:

High-speed & high-precision machining
Low vibration and superior stability
Intelligent automated production
Flexible multi-spindle configurations
Industrial-grade durability
Fast and professional global technical support

From PCB prototyping to high-volume manufacturing, CHIKIN CNC provides reliable and efficient drilling & routing solutions that help customers improve product quality, productivity, and market competitiveness.

Contact us today for customized solutions and competitive quotations.

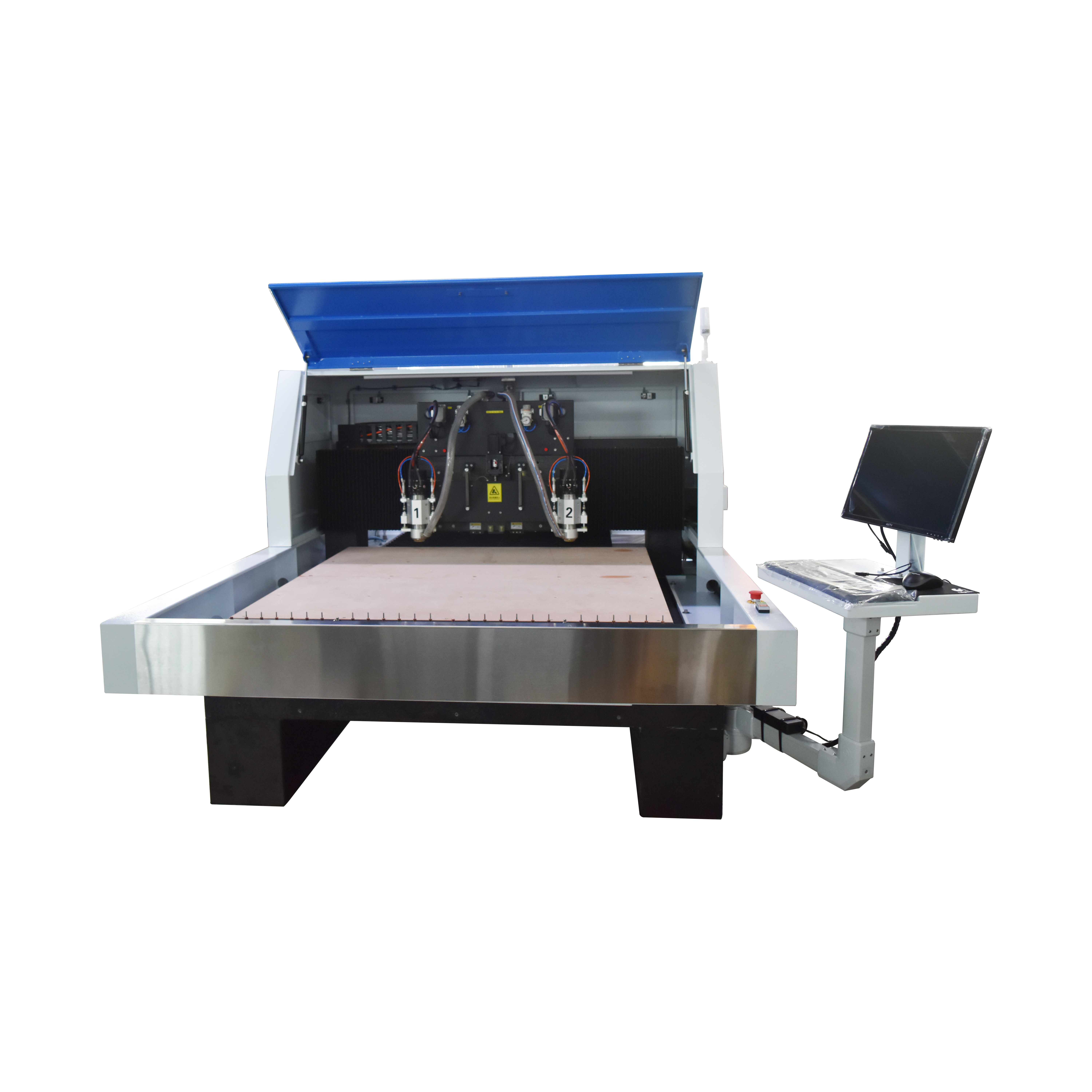

The 550 x 1250mm PCB Drilling and Routing Machine is designed for shops that need a compact but capable platform for board processing, prototyping, and small-batch production. For buyers, the main challenge is usually the same: how to handle accurate drilling, contour routing, and repeatable panel work without tying up larger production equipment. This machine format addresses that problem with a dedicated working area, a gantry-style processing structure, and an external operator station that keeps the workflow organized on the shop floor.

A PCB drilling machine is used to create accurate holes and routing paths in board materials where consistency, hole position, and clean edge quality matter. For manufacturers working on electronics prototypes, small-batch production, or panelized boards, the main challenge is keeping repeatability stable while reducing manual handling errors. A machine with computer-controlled motion, enclosed structure, and a multi-head processing layout can help solve that problem by supporting controlled drilling, marking, or routing operations with better alignment than hand-guided methods.
