The Chikin 4 Spindle PCB Drilling and Routing Machine (CK-04R) is a high-throughput powerhouse for mid-to-high volume PCB manufacturing. With 4 synchronized high-speed spindles (60,000 RPM, 1.8 kW each), robust granite base for vibration-free stability, premium German/Japanese linear guides & ballscrews, automatic tool change, tool length detection, tool diameter detection, broken tool detection, and pressure foot switch. Achieve ±0.005 mm repeatability and positioning accuracy — ideal for efficient drilling and routing on multilayer FR4, aluminum substrates, and complex panels.

The Chikin 4 Spindle PCB Drilling Machine (CK-04D) is a high-throughput powerhouse for mass production PCB drilling. Equipped with 4 ultra-high-speed air-bearing spindles (up to 200,000 RPM), robust granite base, premium German/Japanese linear guides & ballscrews, automatic tool change, tool length/diameter detection, broken tool detection, and optional pressure foot switch. Achieve ±0.005mm repeatability and positioning accuracy — perfect for high-volume multilayer, HDI, rigid-flex, and fine-pitch drilling with maximum efficiency.

A PCB CNC drilling and routing machine helps manufacturers solve a common production problem: how to make precise holes, slots, outlines, and repeatable board features without relying on manual alignment. For prototyping and small-batch PCB work, consistency matters as much as speed. A computer-controlled system reduces positioning errors, supports steady output, and makes it easier to process flat board-like materials with the same geometry from part to part.

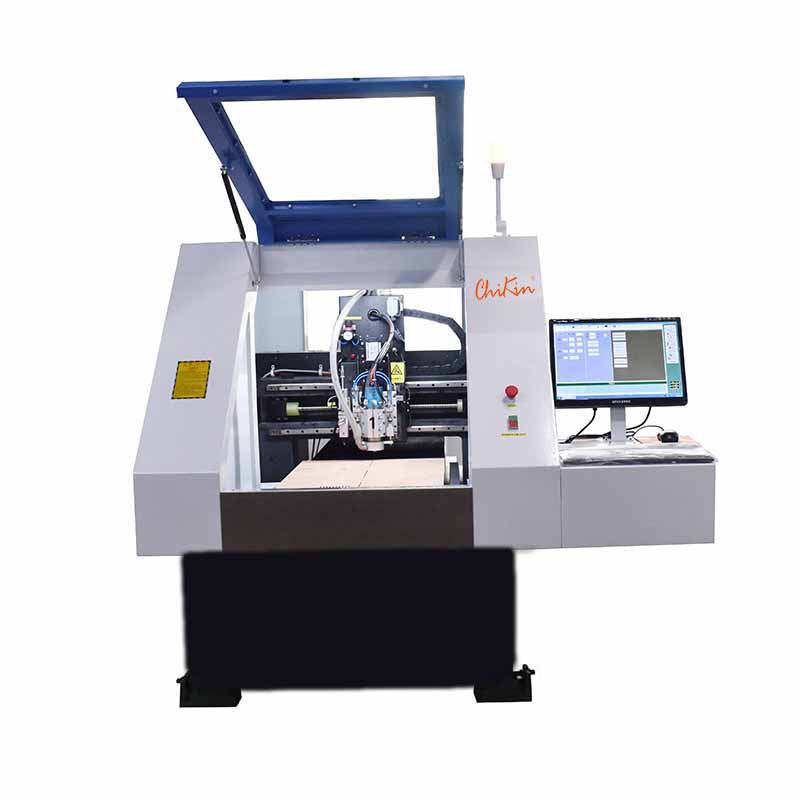

Chikin 1 Drill 1 Route PCB Machine with CCD is a smart, efficient hybrid solution combining one dedicated high-speed drilling spindle and one powerful routing spindle in a single machine. Integrated CCD vision ensures automatic fiducial alignment and precise registration. Built with robust granite base, high-accuracy linear guides & ballscrews, automatic tool change, tool length detection, tool diameter detection, broken tool detection, and pressure foot switch. Ideal for mid-volume PCB production requiring both drilling and routing without tool swapping or multiple setups — achieving ±0.005mm repeatability and clean results on FR4, flex, rigid-flex, and aluminum boards.

Chikin 1 Drill 1 Route PCB Machine with CCD is the smart hybrid solution for mid-volume PCB production. One dedicated high-speed drilling spindle + one robust routing spindle, integrated CCD vision for automatic fiducial alignment, robust granite base, premium linear guides & ballscrews, automatic tool change, tool length detection, tool diameter detection, broken tool detection, and pressure foot switch. Delivers ±0.005mm repeatability and positioning accuracy — perfect for efficient drilling + contour routing on FR4, flex, rigid-flex, and aluminum PCBs without frequent tool swaps.

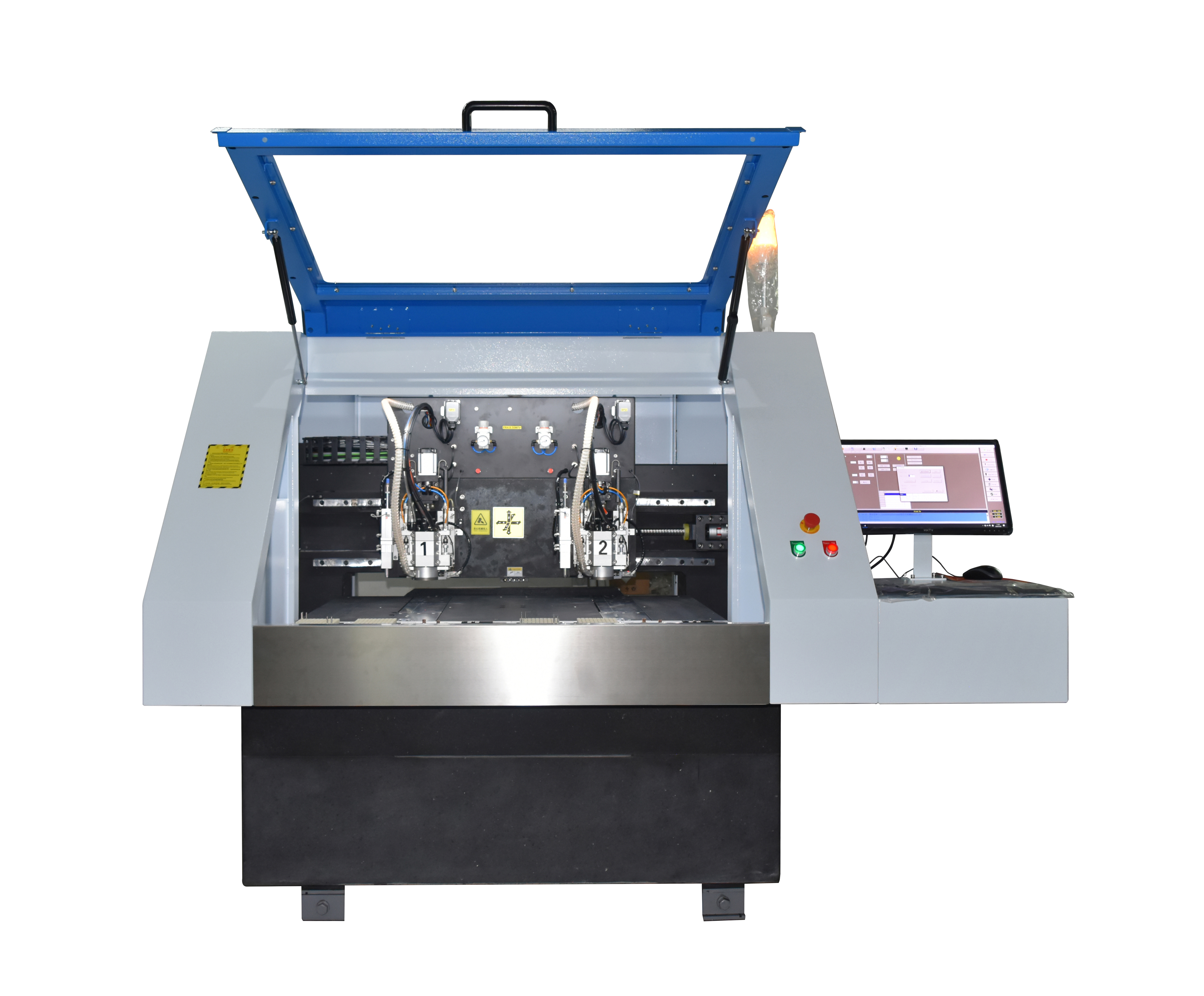

A high speed 2 spindle pcb drilling machine is built for manufacturers that need clean, repeatable holes without slowing down the line. In PCB production, the real challenge is not just making holes; it is keeping registration stable, maintaining edge quality, and handling boards efficiently as volumes rise. This type of enclosed CNC equipment is designed for that pressure. With a dual-head layout, a protected work chamber, and operator touchscreen control, it supports faster drilling workflows while helping reduce exposure to moving parts and process debris.
