Automatic PCB Target Drilling machine
Automatic PCB Target Drilling machine
Automatic PCB Target Drilling machine
contain
‌
‌
‌
‌
‌
Description
Additional Information
Privacy Policy
Reviews

The Chikin PCB Target Drilling Machine (Target shooting machine) is specialized for precision drilling of target holes, fiducials, and registration marks — critical for multilayer PCB layer-to-layer alignment and subsequent processes like X-ray inspection or drilling optimization. This PCB Target Drilling Machine uses advanced CCD vision to automatically locate and drill targets with exceptional accuracy, eliminating manual errors and ensuring consistent results.

  1. Robust Construction with Granite Built on a high-density granite base, the PCB Target Drilling Machine offers superior vibration damping and thermal stability — vital for maintaining micron-level precision during high-speed target hole creation on sensitive multilayer panels.
  2. High Accuracy Linear Guide and Ballscrew Equipped with premium German Rexroth or Japanese linear rails and ballscrews, this PCB Target Drilling Machine delivers smooth, backlash-free motion with rapid positioning and tight ±0.005 mm repeatability / positioning accuracy for perfect fiducial placement.
  3. Automatic Tool Change & Intelligent Detection Systems The PCB Target Drilling Machine includes automatic tool changer, integrated tool length detection, tool diameter detection, broken tool detection (BBD), and pressure foot switch — reducing downtime, protecting micro-tools, and enabling reliable unattended operation for high-throughput target drilling.

Core Technical Highlights

  • High-resolution CCD vision system for automatic fiducial/target recognition and alignment
  • High-speed spindles optimized for small-diameter target holes (e.g., 0.15–3.175 mm typical)
  • Granite base + Panasonic/Delta drive system
  • CHIKIN CNC or SIEB & MEYER control (English/Chinese interface)
  • Table size: 560×680 mm (or custom)
  • Optional linear scale for ±0.001 mm resolution
  • Power: 220V/380V 3PH
  • Seamless integration with Chikin drilling/routing, laser, AOI, and X-ray systems

This PCB Target Drilling Machine is indispensable for multilayer/HDI production, improving layer registration, reducing offset defects, and supporting high-reliability applications in automotive, medical, and telecom PCBs.

Backed by 3-year precision warranty and 24-hour global support — the PCB Target Drilling Machine ensures flawless target accuracy and production efficiency in 2026.

Contact us for CCD target demo, sample drilling, or customized quote!

Machine Specification

People who viewed this also viewed

(PE, PVC, PET, OPP) Film, flexible circuit board, professional film Punching Machine for Precision Sheet Processing

(PE, PVC, PET, OPP) Film, flexible circuit board, professional film Punching Machine for Precision Sheet Processing

A punching machine is used to create repeatable holes, slots, cutouts, and formed features in sheet materials, and that solves a common manufacturing problem: how to make high-volume parts faster and more consistently than manual drilling, cutting, or trimming. In many factories, a CNC punching machine becomes a core production asset because it helps reduce labor time, improve part uniformity, and keep downstream assembly work moving without bottlenecks. For buyers comparing equipment, the real value is not only punching speed. It is also the stability of the frame, the accuracy of positioning, the tooling strategy, the ability to handle different sheet types, and the ease of integrating inspection and control steps into the process.

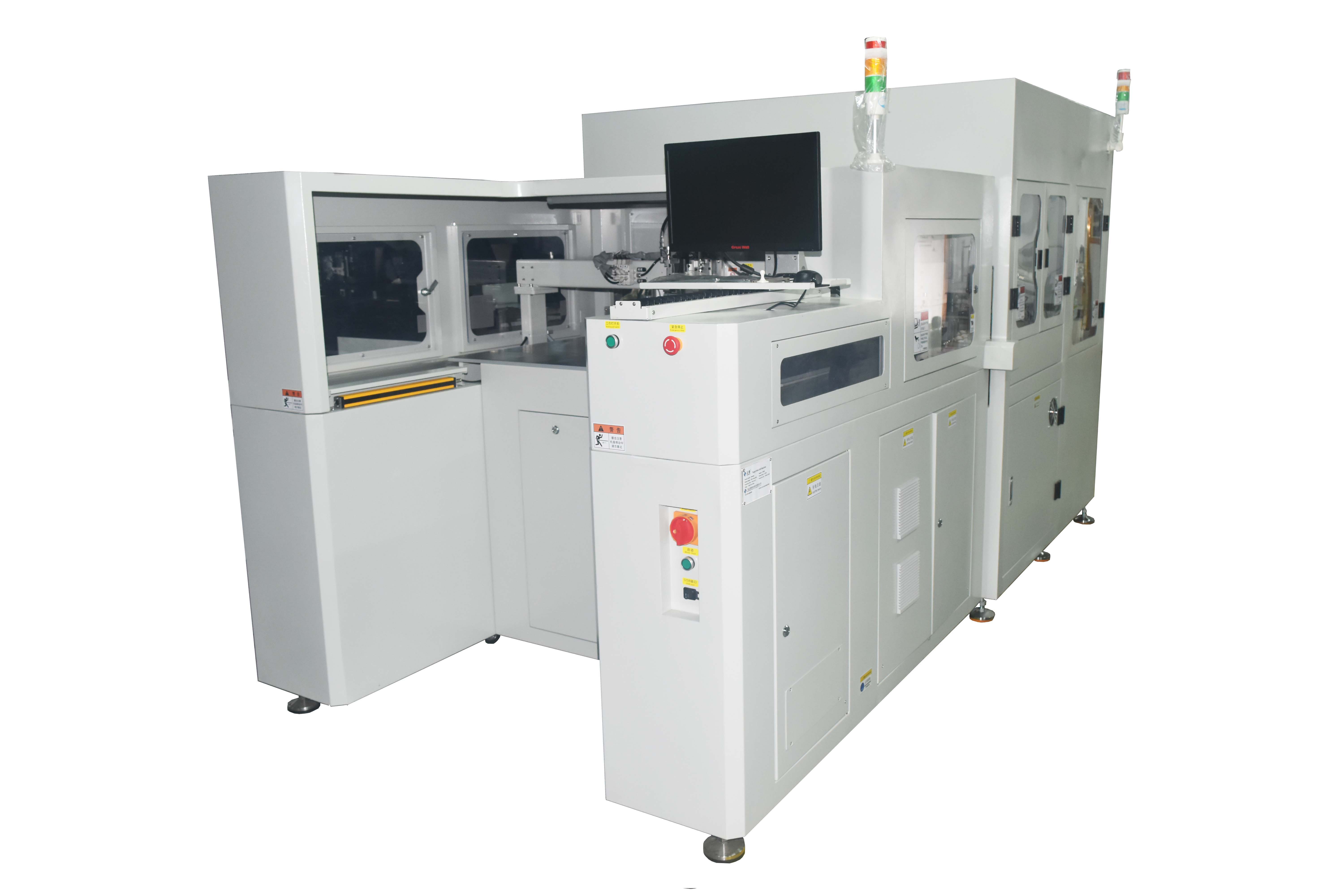

Fully Automatic Target Drilling Machine for PCB Registration

Fully Automatic Target Drilling Machine for PCB Registration

A fully automatic target drilling machine helps solve a common production problem in electronics manufacturing: how to create repeatable registration holes without slowing down the line or introducing alignment error. When multilayer panels or inner-layer material must be positioned accurately before lamination, testing, or downstream assembly, manual marking and drilling can become a bottleneck. This type of equipment is designed for stable, enclosed, and repeatable hole processing in high-volume workflows.

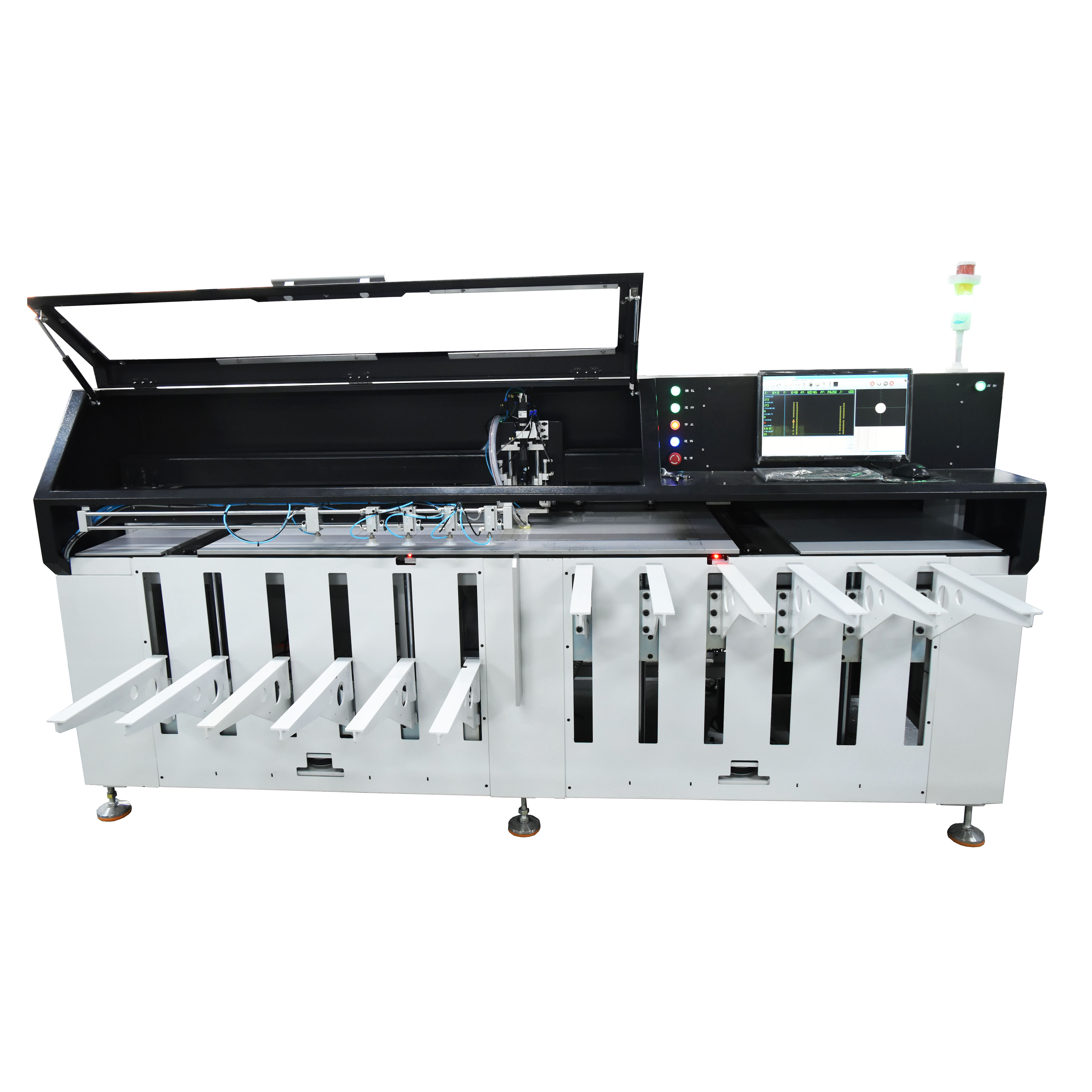

Automatic PCB Target Drilling machine
