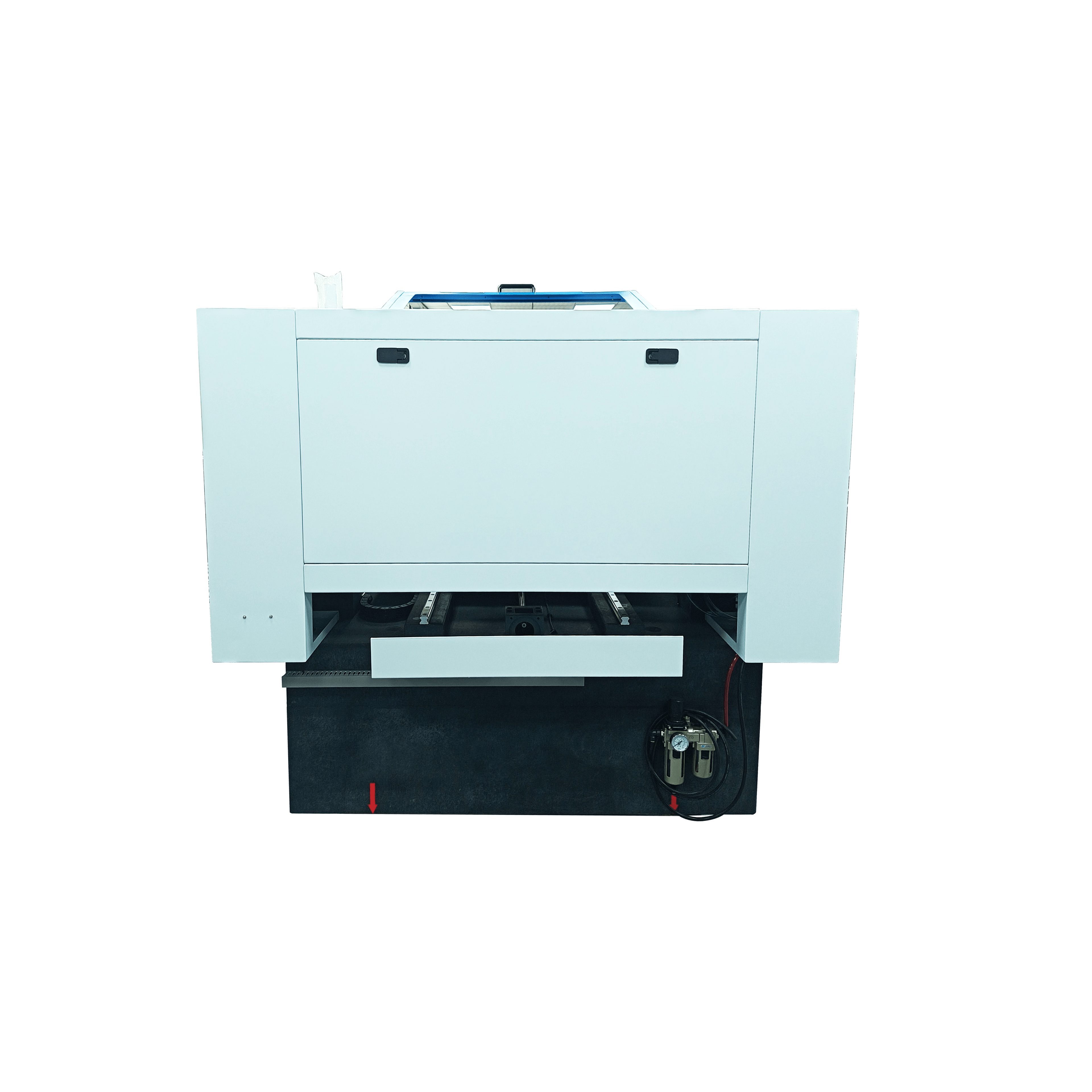

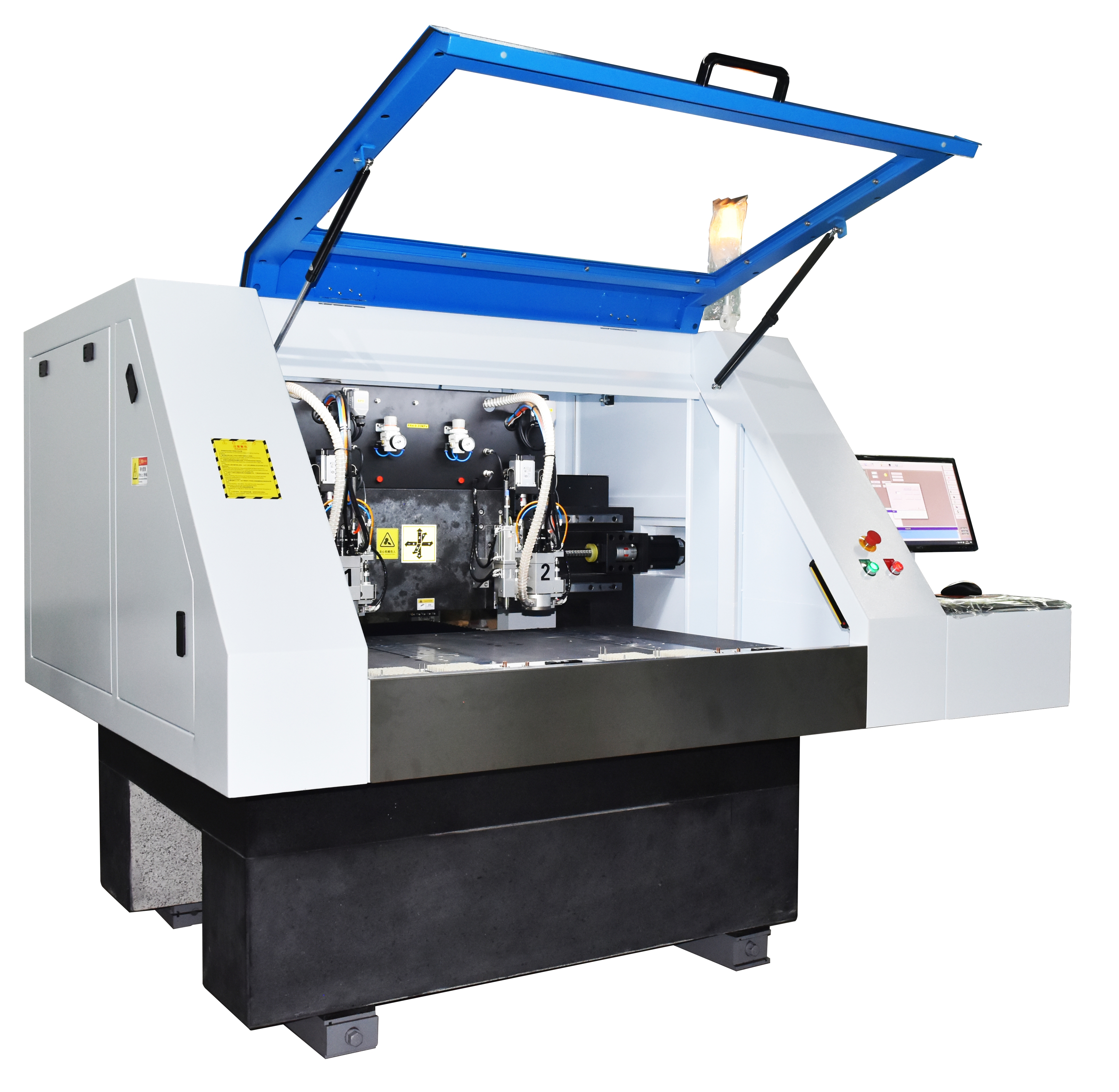

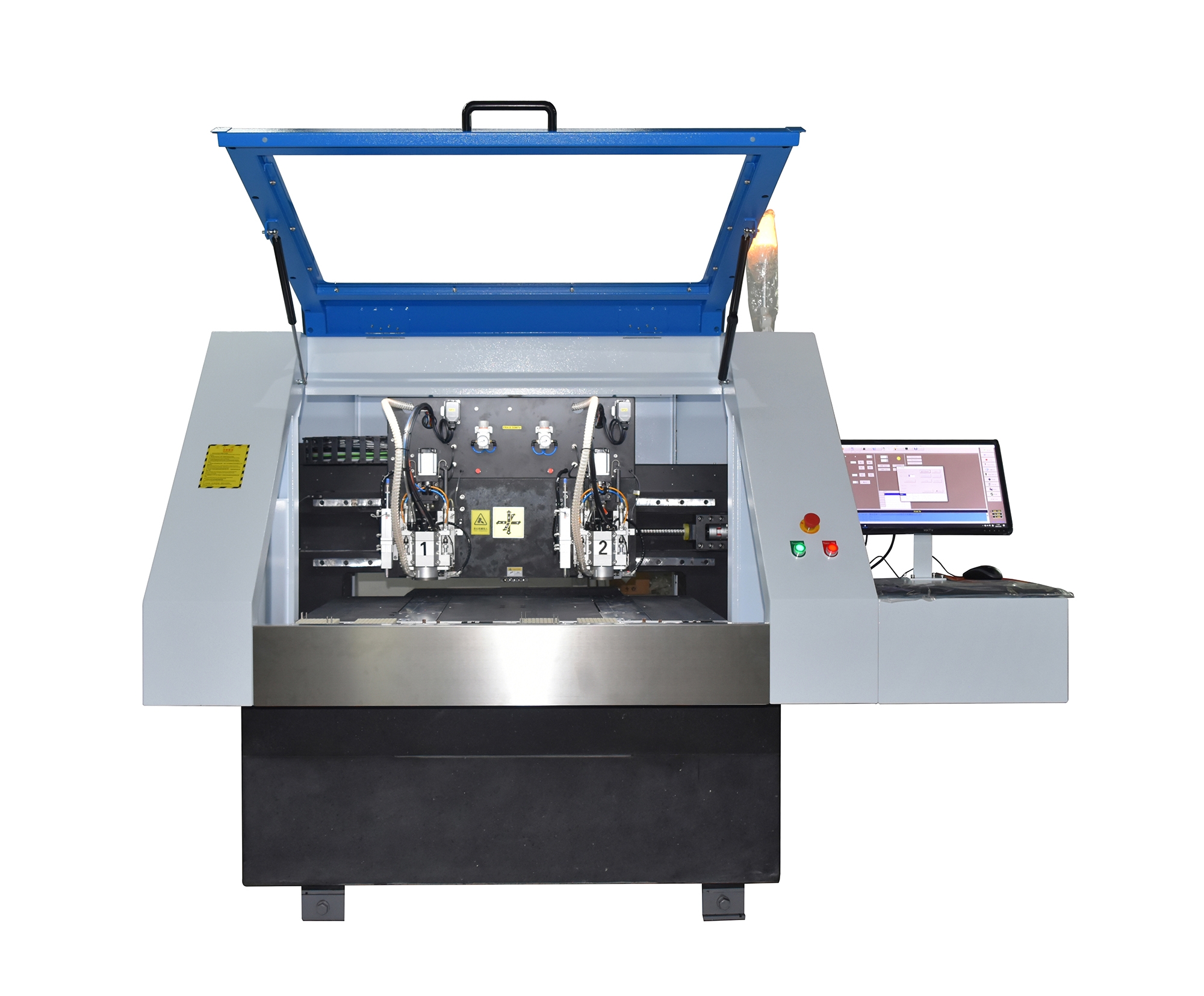

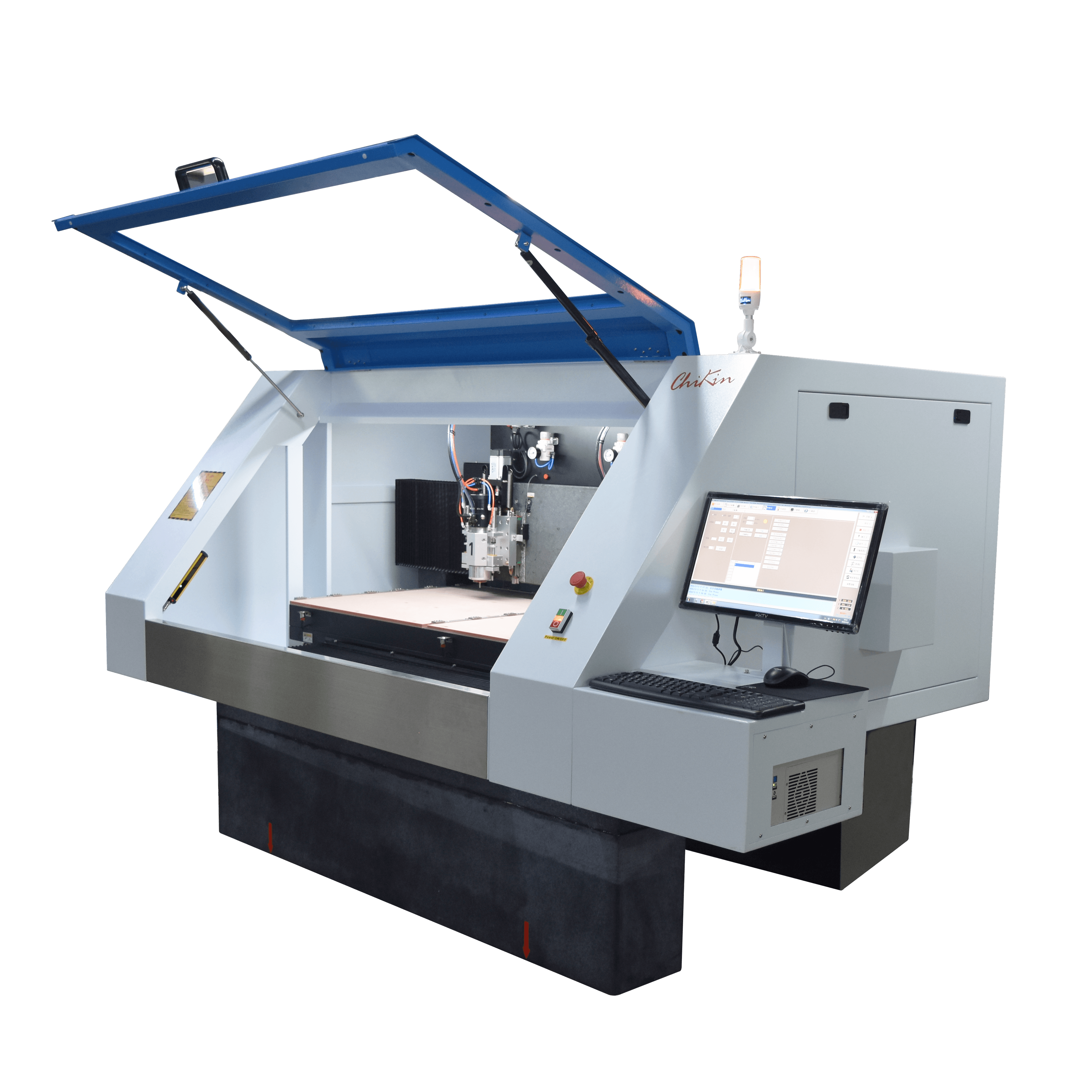

The Chikin 2 Spindle PCB Drilling Machine (CK-02D) is engineered for manufacturers demanding speed, accuracy, and reliability in high-volume PCB drilling. This dual spindle PCB drilling machine combines advanced features to maximize throughput while maintaining tight tolerances.

1. Robust Construction with Granite Built on a high-density granite base, the 2 Spindle PCB Drilling Machine provides outstanding vibration damping and thermal stability — critical for consistent micro-hole drilling at high speeds and ensuring long-term precision under 24/7 operation.
2. High Accuracy Linear Guide and Ballscrew Equipped with top-grade German Rexroth or Japanese linear rails and ballscrews, this high precision PCB drilling machine delivers smooth, backlash-free motion with rapid traverse speeds up to 40 m/min (XY) and Z-axis 30 m/min, supporting ±0.005 mm repeatability and positioning accuracy.
3. Automatic Tool Change & Intelligent Detection Systems The 2 Spindle PCB Drilling Machine features a large-capacity tool magazine (up to 200 positions), fully automatic tool change, integrated tool length detection, tool diameter detection, broken tool detection (CBD), and optional pressure foot switch (QIC) — minimizing manual intervention, reducing downtime, and protecting expensive micro-drills.

Core Technical Highlights (CK-02D Model):

• Dual high-speed air-bearing spindles (160,000–200,000 RPM, 0.85 kW each) with water cooling
• Drilling tool diameter range: 0.15–6.35 mm
• Granite machine base + Panasonic drive system
• CHIKIN CNC or SIEB & MEYER CNC84 control with Chinese/English interface
• Table size: 560×680 mm
• Optional linear scale resolution ±0.001 mm
• Power: 220V/380V 3PH, 5KVA
• Machine weight ≈2780 kg, dimensions 2170×1700×1600 mm

This dual spindle PCB drilling machine excels in mid-to-high volume production of multilayer FR4, HDI, rigid-flex, and aluminum PCBs, offering 1.8–2.5× higher throughput than single-spindle models while delivering clean, burr-free holes and excellent first-pass yield. Fully compatible with Chikin’s broader PCB line (routing, laser cutting, V-CUT, AOI).

Backed by 3-year precision warranty and 24-hour global support — the 2 Spindle PCB Drilling Machine is your reliable partner for scaling precision drilling in 2026.

Contact us for live demos, sample processing, or a customized ROI calculation!
