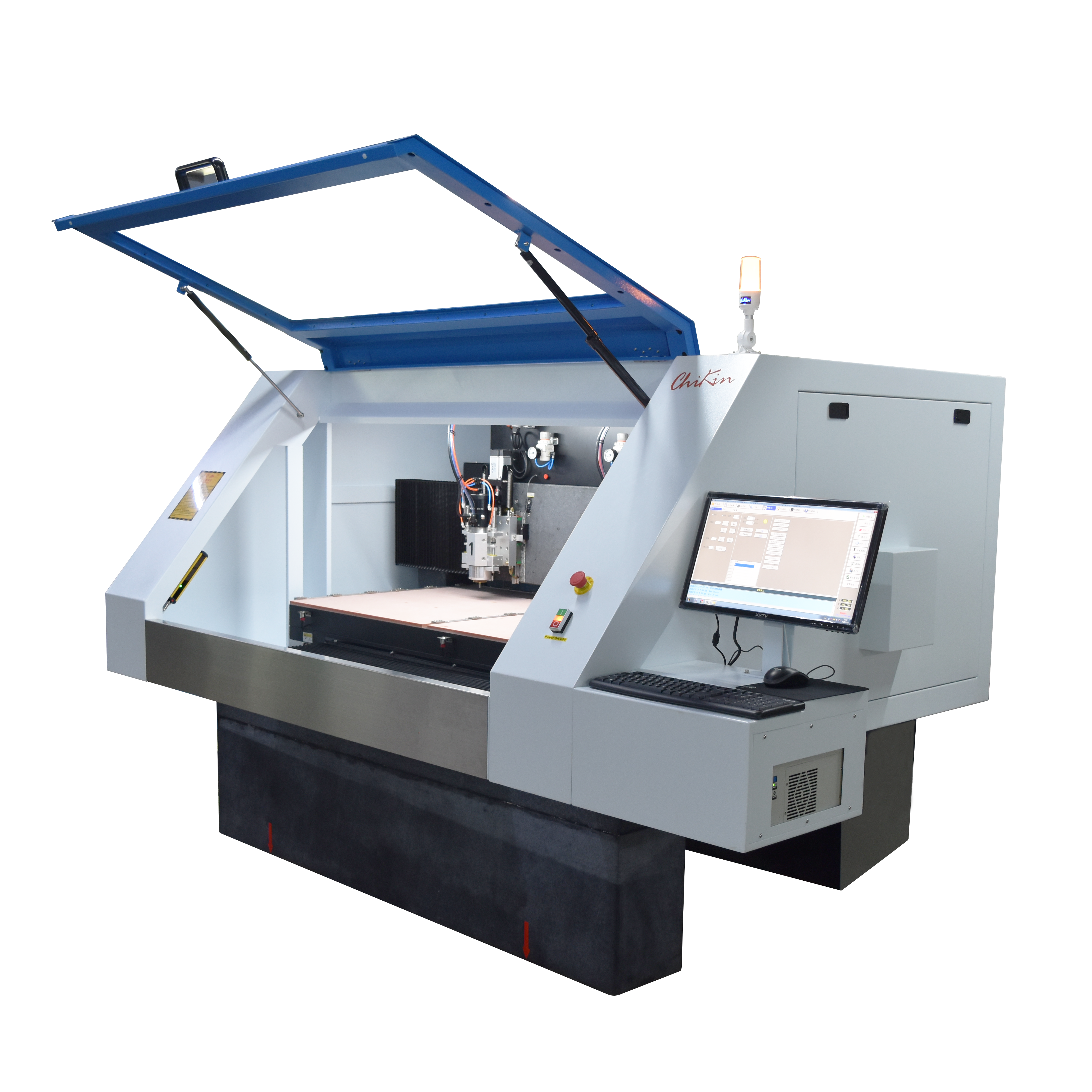

Chikin 1 Drill 1 Route PCB Machine with CCD is a smart, efficient hybrid solution combining one dedicated high-speed drilling spindle and one powerful routing spindle in a single machine. Integrated CCD vision ensures automatic fiducial alignment and precise registration. Built with robust granite base, high-accuracy linear guides & ballscrews, automatic tool change, tool length detection, tool diameter detection, broken tool detection, and pressure foot switch. Ideal for mid-volume PCB production requiring both drilling and routing without tool swapping or multiple setups — achieving ±0.005mm repeatability and clean results on FR4, flex, rigid-flex, and aluminum boards.

An inkjet printer is often chosen when a shop needs fast, repeatable output with minimal setup. In production environments, the main problem is rarely just printing one sheet; it is keeping quality steady across batches while reducing operator handling, misfeeds, and downtime. This enclosed industrial machine is designed for controlled, computer-driven sheet processing, and it fits the same buyer mindset: reliable output, safe operation, and efficient workflow control for signage, templates, prototypes, and other flat material jobs. If you are comparing a high-speed inkjet printer or looking for a multifunction inkjet printer for a busy floor, this type of equipment may be relevant when your workflow also includes cutting, marking, or precision surface processing rather than only ink deposition.

The 550 x 1250mm PCB Drilling and Routing Machine is designed for shops that need a compact but capable platform for board processing, prototyping, and small-batch production. For buyers, the main challenge is usually the same: how to handle accurate drilling, contour routing, and repeatable panel work without tying up larger production equipment. This machine format addresses that problem with a dedicated working area, a gantry-style processing structure, and an external operator station that keeps the workflow organized on the shop floor.

The single cutter PCB V cut machine is built for manufacturers who need a cleaner way to separate routed or scored panels without putting extra stress on fragile assemblies. In PCB production, board breakage, edge damage, and inconsistent separation can create scrap and slow the line. This type of equipment addresses that problem by giving operators a controlled depaneling method for handling V-groove boards and similar panel formats in a more repeatable workflow.

Based on the visible machine design, this unit is an enclosed industrial system with a touchscreen HMI, a status tower light, an emergency-stop control, and a guided work area with fixtures or rails. Those features point to a production-focused machine architecture designed for safe, stable operation in an electronics manufacturing environment. While the exact internal process cannot be confirmed from the image alone, the configuration matches the kind of equipment buyers often evaluate when comparing a PCB V cut machine, a PCB depaneling machine, or a PCB board separator for line use.

The Chikin 4 Spindle PCB Drilling and Routing Machine (CK-04R) is a high-throughput powerhouse for mid-to-high volume PCB manufacturing. With 4 synchronized high-speed spindles (60,000 RPM, 1.8 kW each), robust granite base for vibration-free stability, premium German/Japanese linear guides & ballscrews, automatic tool change, tool length detection, tool diameter detection, broken tool detection, and pressure foot switch. Achieve ±0.005 mm repeatability and positioning accuracy — ideal for efficient drilling and routing on multilayer FR4, aluminum substrates, and complex panels.

The Chikin 4 Spindle PCB Drilling Machine (CK-04D) is a high-throughput powerhouse for mass production PCB drilling. Equipped with 4 ultra-high-speed air-bearing spindles (up to 200,000 RPM), robust granite base, premium German/Japanese linear guides & ballscrews, automatic tool change, tool length/diameter detection, broken tool detection, and optional pressure foot switch. Achieve ±0.005mm repeatability and positioning accuracy — perfect for high-volume multilayer, HDI, rigid-flex, and fine-pitch drilling with maximum efficiency.
