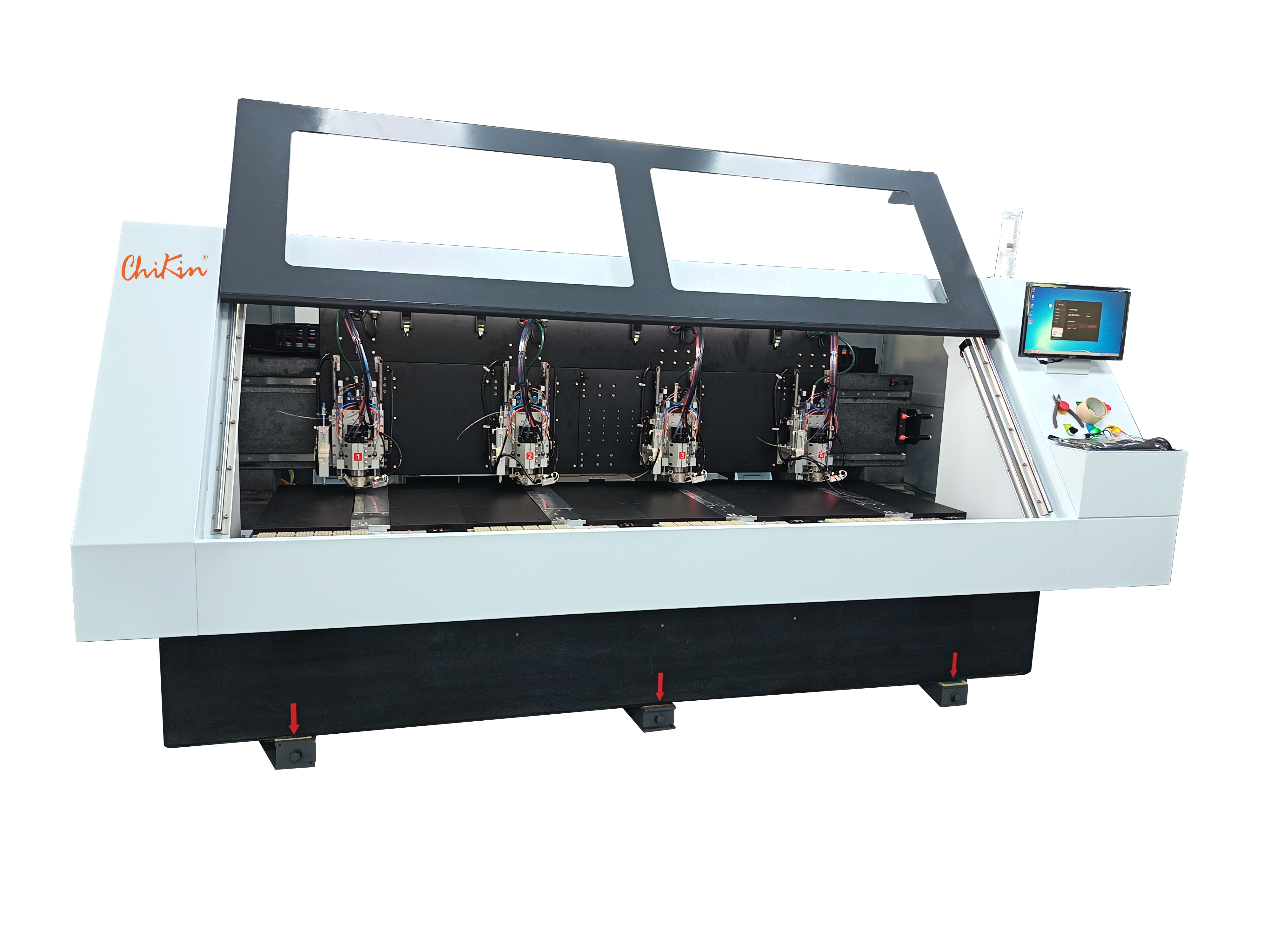

The Chikin 4 Spindle PCB Drilling Machine (CK-04D) is designed for manufacturers requiring maximum drilling throughput without sacrificing precision. This multi spindle PCB drilling machine excels in high-volume environments with its four synchronized high-speed spindles and intelligent automation features.

1. Robust Construction with Granite Built on a premium granite base, the 4 Spindle PCB Drilling Machine offers exceptional vibration damping and thermal stability — ensuring consistent micro-hole accuracy even during continuous high-speed operation.
2. High Accuracy Linear Guide and Ballscrew Fitted with top-grade German Rexroth or Japanese linear rails and ballscrews, this multi spindle PCB drilling machine provides ultra-smooth motion, rapid traverse speeds up to 40 m/min (XY/Z), and tight ±0.005 mm repeatability and positioning accuracy.
3. Automatic Tool Change & Advanced Detection Systems The 4 Spindle PCB Drilling Machine includes a large tool magazine (up to 200 positions), fully automatic tool change, integrated tool length detection, tool diameter detection, broken tool detection (CBD), and optional pressure foot switch (QIC) — dramatically reducing downtime, protecting micro-drills, and enabling unattended production.

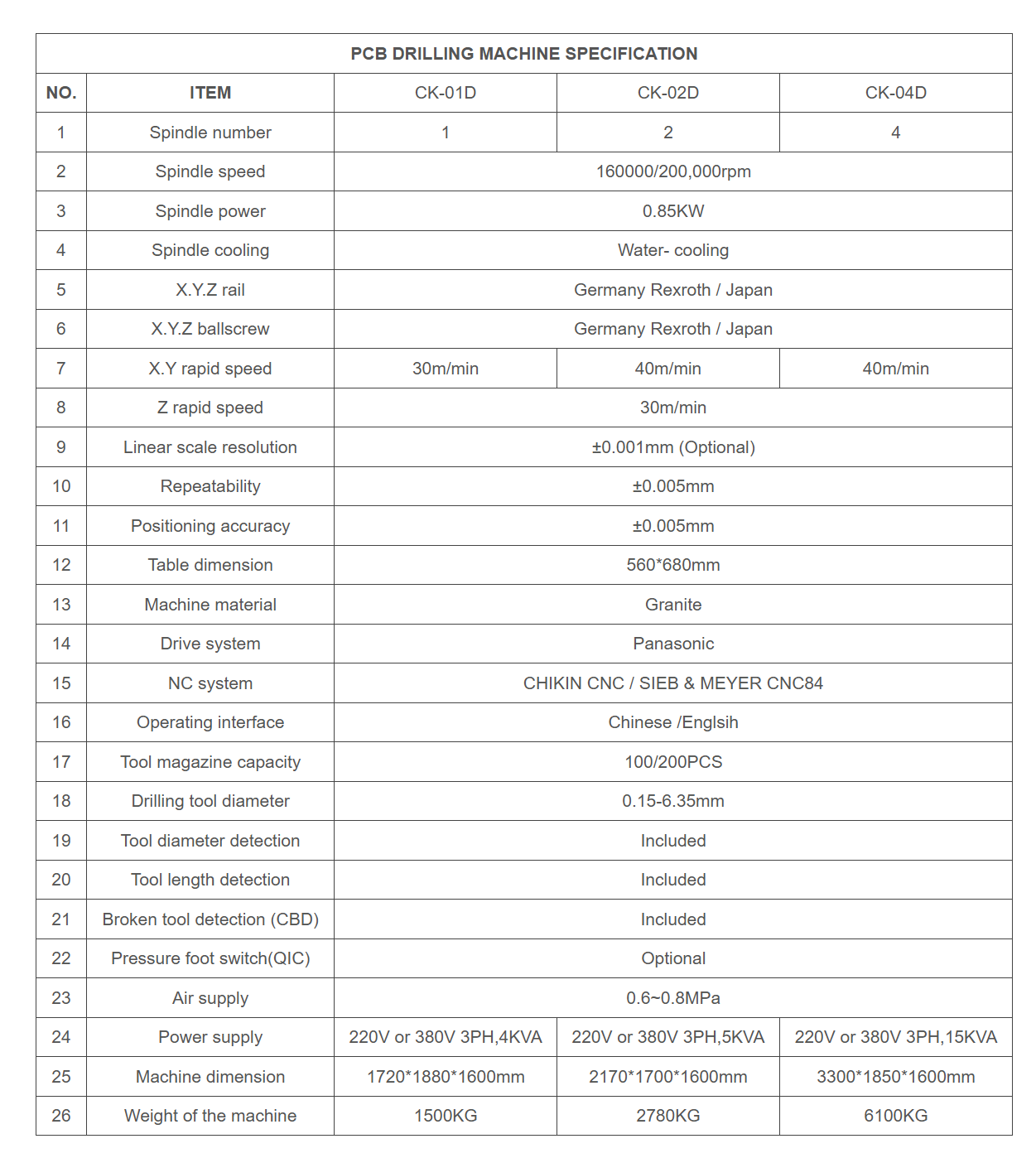

Core Technical Highlights (CK-04D Model):

• 4 high-speed air-bearing spindles (160,000–200,000 RPM, 0.85 kW each) with water cooling
• Drilling tool diameter range: 0.15–6.35 mm
• Granite machine base + Panasonic drive system
• CHIKIN CNC or SIEB & MEYER CNC84 control with Chinese/English interface
• Table size: 560×680 mm
• Optional linear scale resolution ±0.001 mm
• Power: 220V/380V 3PH, 15KVA
• Machine weight ≈6100 kg, dimensions 3300×1850×1600 mm

This 4 Spindle PCB Drilling Machine delivers 3–4× higher throughput compared to single-spindle models, making it ideal for mass production of multilayer FR4, HDI, rigid-flex, and fine-pitch PCBs. Fully compatible with Chikin’s complete PCB line (routing machines, laser cutting, V-CUT, AOI, etc.).

Backed by 3-year precision warranty and 24-hour global support — the 4 Spindle PCB Drilling Machine is the smart choice for scaling high-precision drilling in 2026.

Contact us for sample processing, live demo, or detailed ROI analysis!
