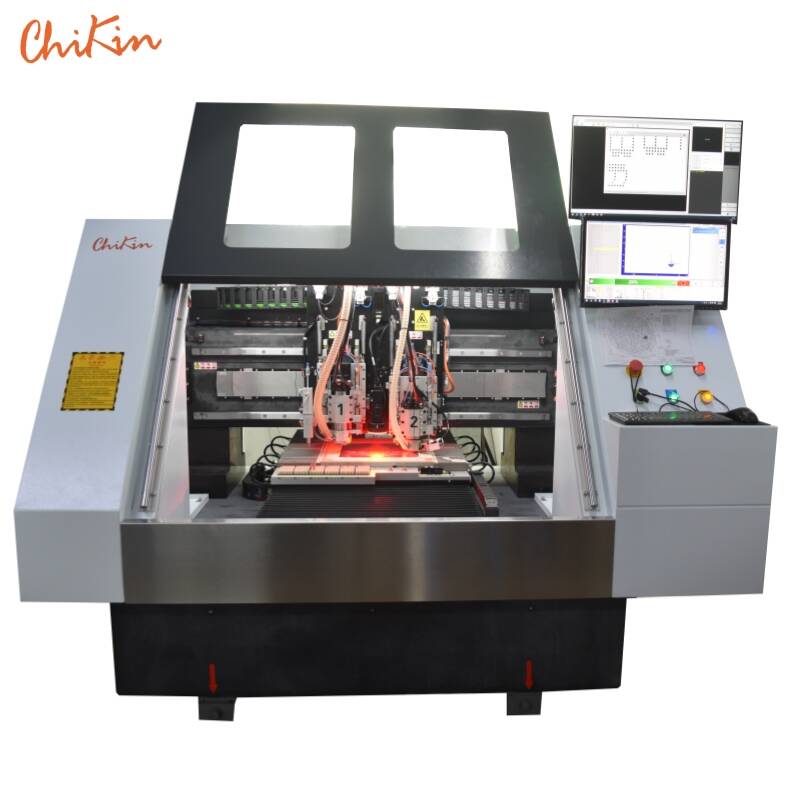

The Chikin 1 Drill 1 Route PCB Machine with CCD is purpose-built for manufacturers who want optimized drilling and routing performance in one compact footprint. This dual spindle PCB drilling and routing machine assigns dedicated tasks to each spindle: high-RPM precision drilling on one head and high-torque contour routing on the other — all guided by advanced CCD vision for flawless alignment.

1. Robust Construction with Granite The 1 Drill 1 Route PCB Machine features a premium granite base that provides exceptional vibration isolation and thermal stability — ensuring consistent accuracy during high-speed drilling and routing cycles, even in demanding 24/7 production environments.
2. High Accuracy Linear Guide and Ballscrew Equipped with top-tier German Rexroth or Japanese linear rails and ballscrews, this dual spindle PCB drilling and routing machine delivers ultra-smooth motion, rapid traverse speeds, and tight ±0.005 mm repeatability / positioning accuracy for clean vias and precise board outlines.
3. Automatic Tool Change & Intelligent Detection Systems The 1 Drill 1 Route PCB Machine includes automatic tool changer, integrated tool length detection, tool diameter detection, broken tool detection (BBD), and pressure foot switch — minimizing operator intervention, extending tool life, and enabling reliable unattended operation.

Key CCD Vision Advantages

• Real-time fiducial recognition and auto-correction for rotation, scale, and offset.
• Supports flip-side processing and multi-up panels with high registration precision.
• Reduces scrap and setup time compared to manual alignment methods.

Typical Technical Highlights

• Dedicated drilling spindle (high RPM, micro-drill optimized) + dedicated routing spindle (torque for end mills/slots)
• Water-cooled spindles for continuous duty
• Granite base + Panasonic/Delta servo drives
• CHIKIN CNC or SIEB & MEYER control (English interface)
• Table size: 560×680 mm (or custom)
• Drilling diameter: 0.15–6.35 mm; Routing: 0.5–3.175 mm
• Power: 220V/380V 3PH
• Seamless integration with Chikin laser cutters, V-CUT, AOI, and flying probe systems

This dual spindle PCB drilling and routing machine strikes the perfect balance: higher efficiency than single-spindle machines, lower cost/complexity than 4+ spindle models. Perfect for NPI-to-mid-volume multilayer, rigid-flex, aluminum substrate, and HDI production.

Backed by 3-year precision warranty and 24-hour global support — the 1 Drill 1 Route PCB Machine with CCD is your reliable hybrid processing partner.

Contact us for CCD alignment demo, sample board processing, or detailed quote!
